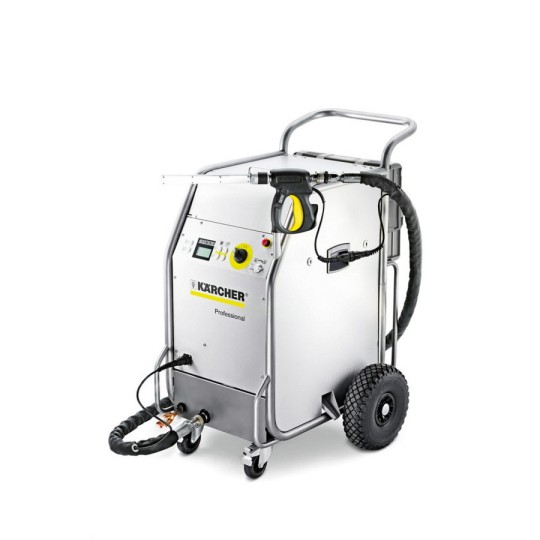

The Ice Blaster IB 15/120 is powerful, robust and extremely reliable. The intelligent, detailed solutions such as case holder, ice emptying, retaining bracket and storage compartments also contribute to its positive overall impression, increase operating comfort and make dry ice cleaning more enjoyable. And from a technical point of view, the solution lies in the detail, which is why we have significantly improved the air streaming in the machine, hose, trigger gun and nozzle. The result: outstanding cleaning performance. In spite of its size, the IB 15/120 is very mobile and can be carried easily by one person, for example over stairs. In short: dry ice blasting at its best!

GFRP dry ice container
  • Optimum insulation of the dry ice.
  • No condensation.
  • No icing up of the machine.
Efficient airflow in the device
  • The dry ice is transported from the device to the nozzle without any damage.
  • Ultimate cleaning performance at the nozzle.
Integrated ground strap coil
  • Easy earthing of the object being blasted.
  • Protection from arcing from the user to the object.
  • Improved jet convenience.
Integrated oil and water separator
  • No icing up of the device.
Refined trigger gun holder
  • The trigger gun is always perfectly stored.
  • Ideal position (e.g., for changing the nozzles).
Integrated storage compartment for nozzles and tools
  • Everything always to hand – directly on the device.
SPECIFICATIONS

Technical data

Connection load (kW)0,6Compressed air connectionClaw coupling (DIN 3238)Casing/frameStainless steel (1.4301)Air pressure (bar/MPa)2 - 16 / 0,2 - 1,6Air qualityDry & oil-freeAir flow (m³/min)2 - 12Sound pressure level (dB(A))125Dry ice capacity (kg)40Dry ice pellets (diameter) (mm)3Dry ice consumption (kg/h)30 - 120Phase (Ph)1Frequency (Hz)50 - 60Voltage (V)220 - 240Weight without accessories (kg)91Weight (with accessories) (kg)101,5Dimensions (L × W × H) (mm)1000 x 800 x 1300

Equipment

  • Nozzle case with foam insert
  • Grease for nozzle threads
  • Flat jet nozzle
  • Flat jet nozzle insert, 8 mm
  • Open-end wrench (for changing nozzles), 2 piece(s)
  • Round jet nozzle, XL, long
  • Spray hose with electrical control cable and quick coupling
  • Jet gun (ergonomic and safe)
  • "Air only" or "Air and ice" switch on the blasting trigger gun
  • Electronic control system
  • Includes ground strap coil
  • Oil and water separator
